Characteristics

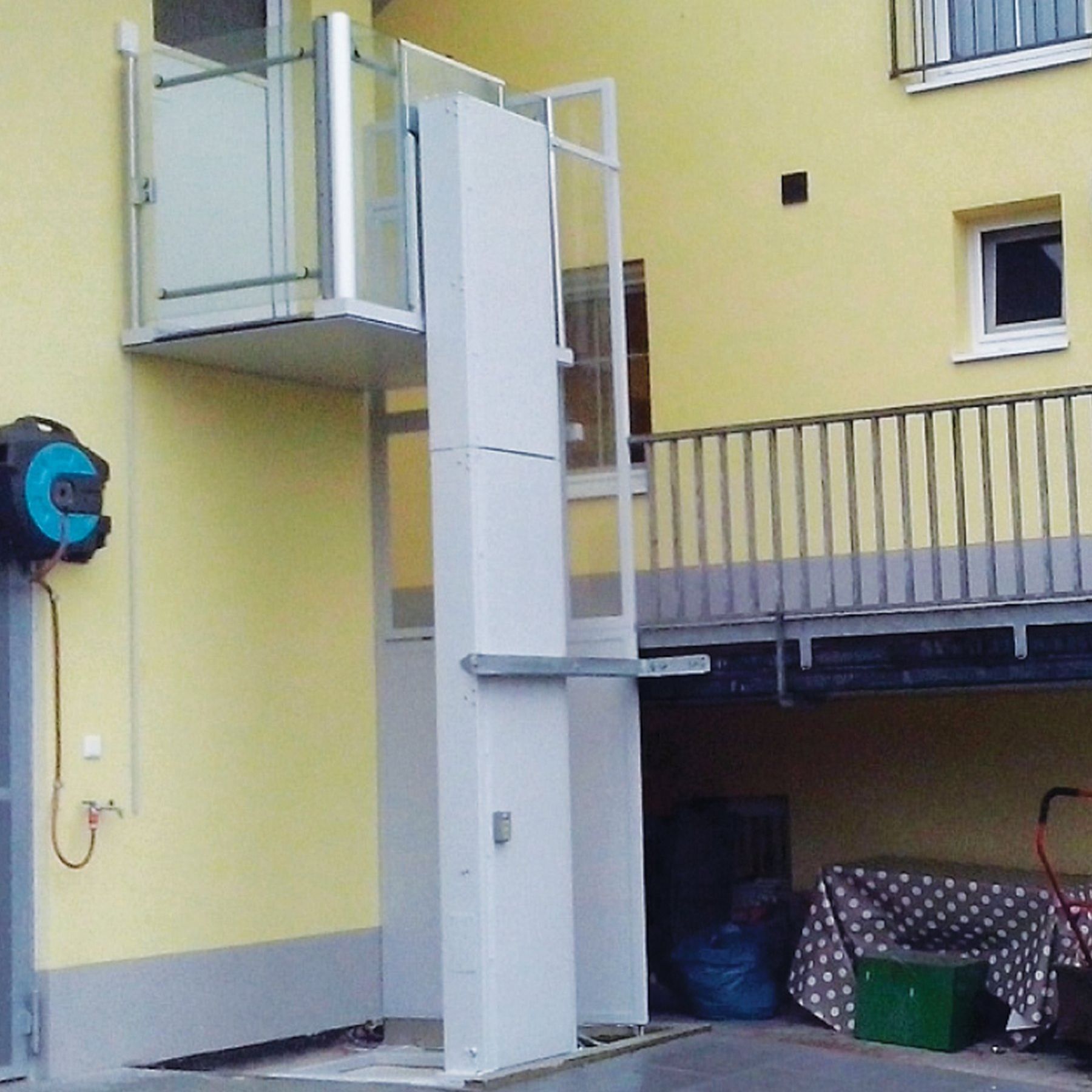

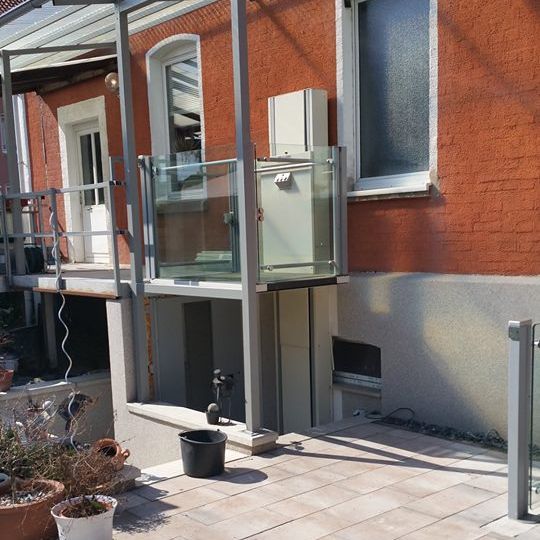

TopLevel, all-round accessibility

Basic Equipment

Single swing manual gates in breakproof glass that open outwards with a 90° stop position, interlocked with platform movements. Gate for access to the upper floor installed on the landing, gate for access from the lower floor installed on board on the platform.

Electromechanical lock and electric consent to leave the floor only with closed and mechanically locked gates.

Fixed walls in shatterproof glass, to protect the sides not affected by access, set up with easy-to-grip handles.

Sensitive bottom under the floor with anti-shock/anti-crushing safety functions.

Hold to run type controls: Up and Down buttons on board, Floor Call buttons on wall-mounted push-button panels.

Emergency anti-blackout device with buffer battery, for emergency descent in the event of a power failure.

Accessible platform, on the lower level, via a fixed slide edge integrated in the floor f the platform.

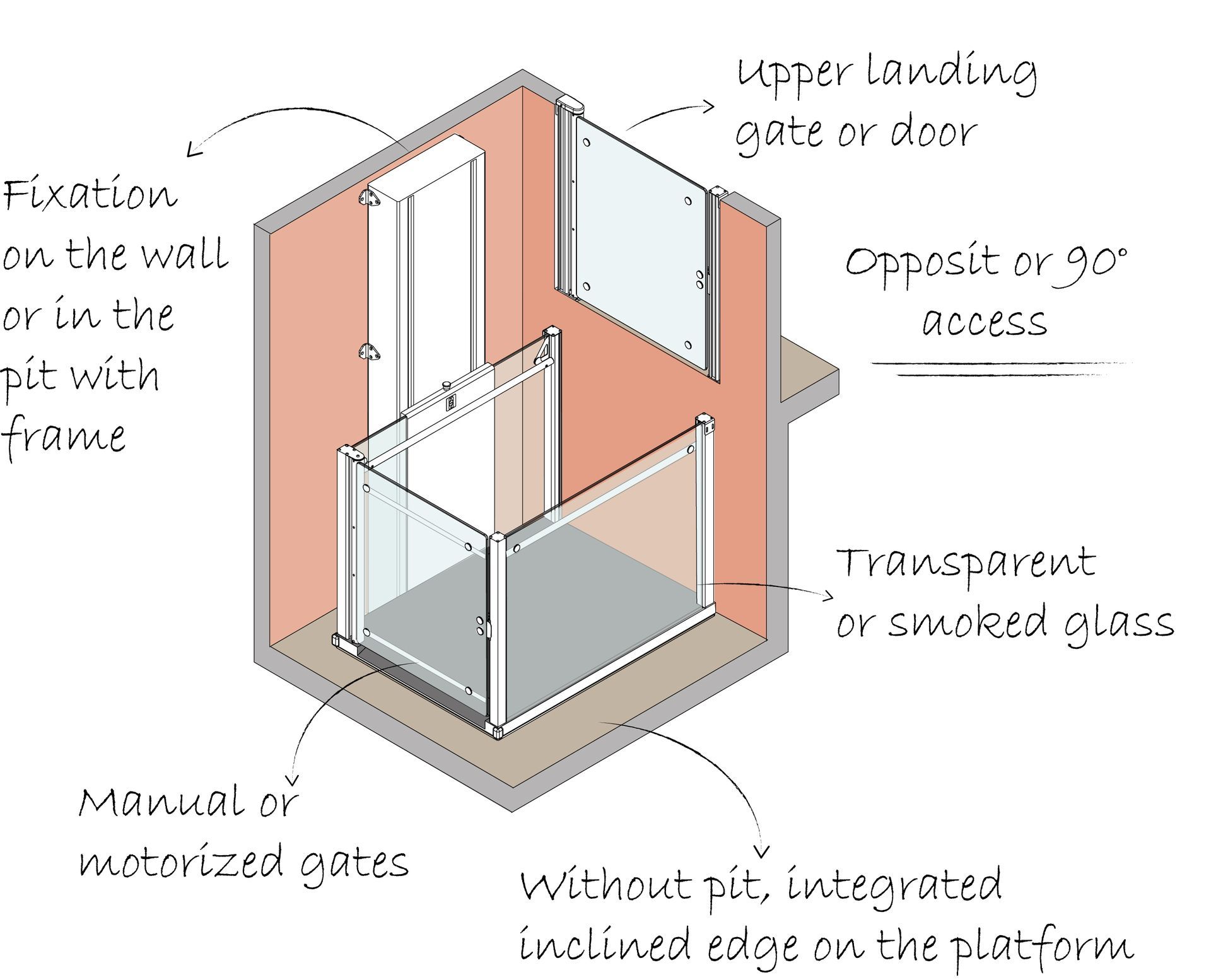

Compact lateral structure that integrates the lifting system, thus eliminating the need for spaces dedicated to the machine shaft and improving the traditional laying phases, making them simpler and more economical.

Optionals

Single swing door at the upper floor, with manual or motorized opening and glass insert.

Self-standing self-supporting execution, with fixing frame in the pit or buried in the floor, or fixed to the floor with a base with inclined edges to facilitate access to the platform.

Gate opening motorisation, with timed closing.

Customized executions: RAL color finishes of client choice and customized platform dimensions.

Panels for gates and fixed walls in metal panel, also decorated with patterns on customer request, or in painted wire mesh with a fine textute. .

Execution in AISI316 stainless steel, particularly resistant to salt spray, ideal for installations in seaside resorts.

Technical datas

Rated Load:

250kg

External platform dimensions:

1500x1120 mm

Useful platform dimensions:

1400x900 mm

Max levels difference:

3000mm

Feeding tension:

230 V Signlephase

Net gate opening:

900mm

Gates and fixed side walls height:

1100mm
