Characteristics

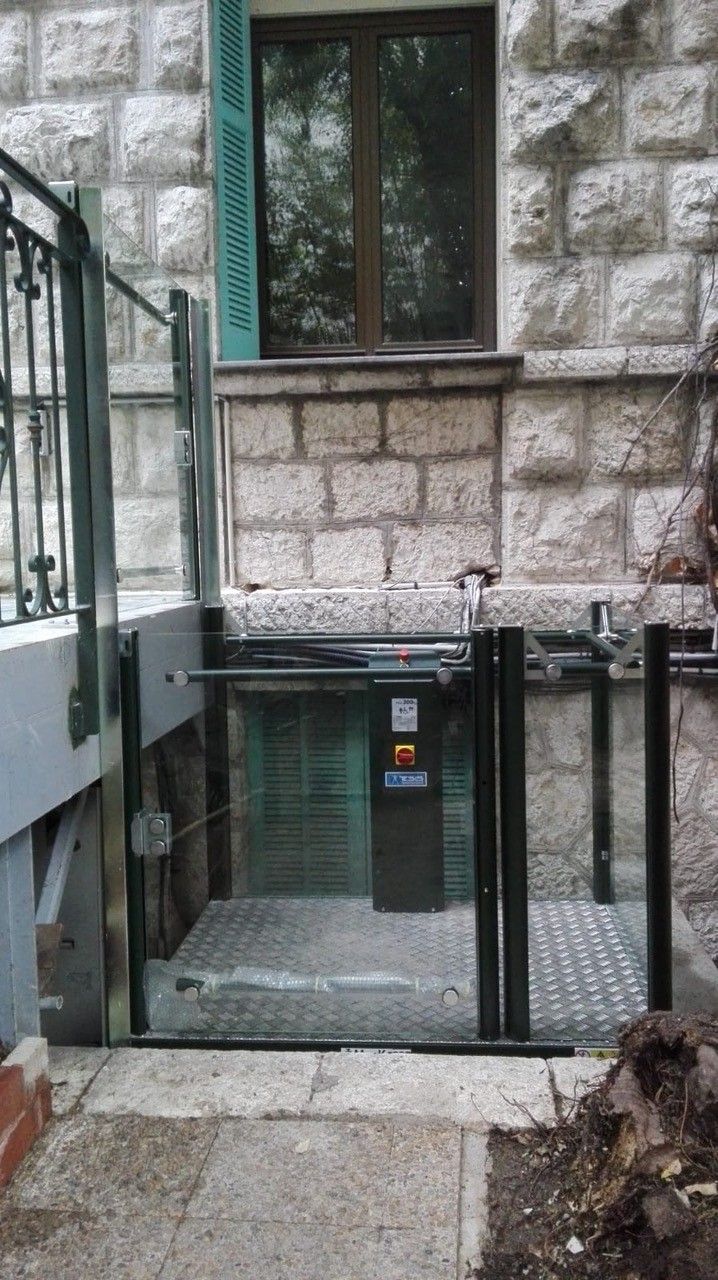

MidiLevel the robust, safe and user-friendly platform lift

Basic equipment

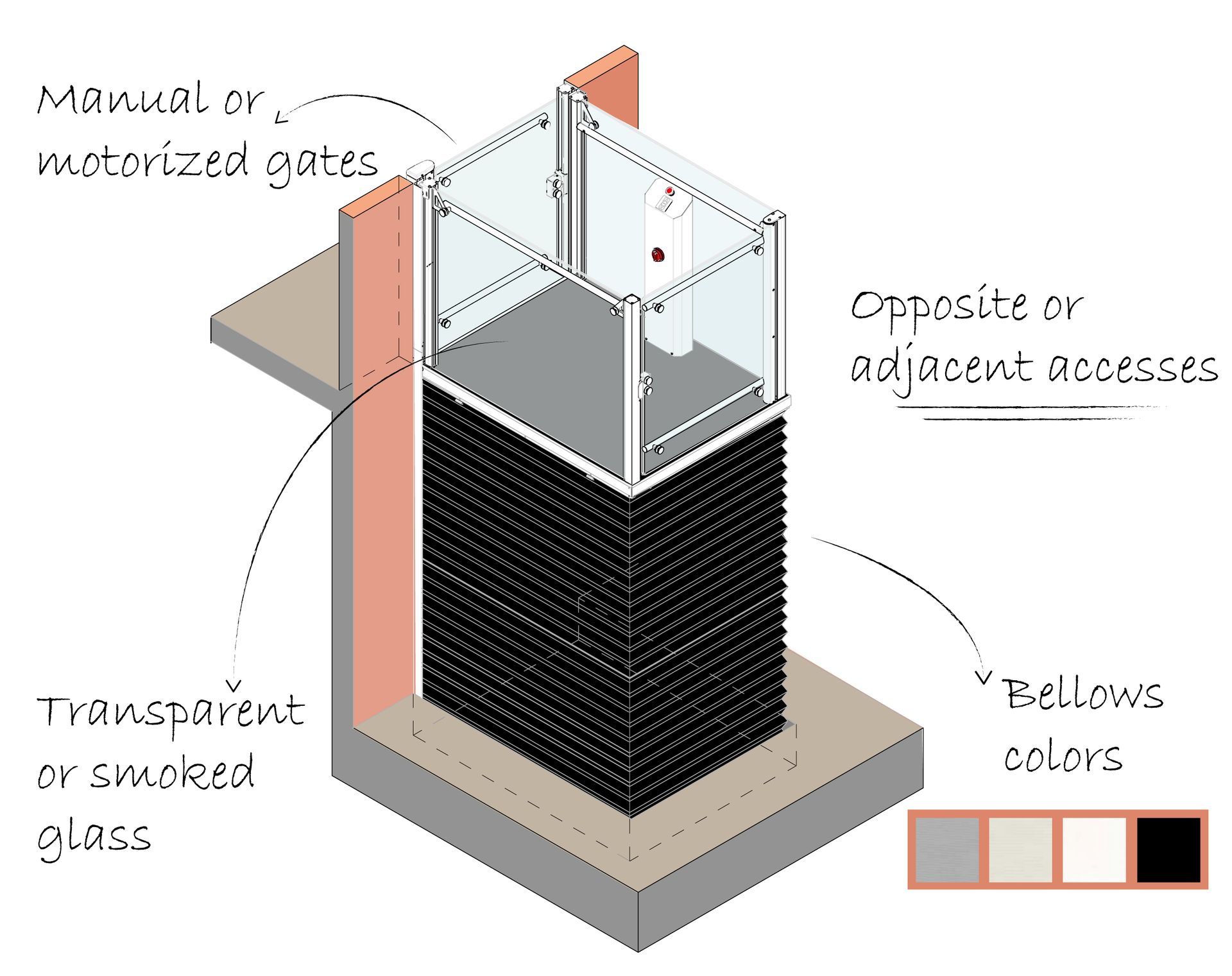

Single swing manual gates in breakproof glass panel, with 90° outwards opneing and 90° stop position. Gate for access to the upper floor installed on the landing, gate for access from the lower floor installed on board on the platform.

Electromechanical lock and electric consent to leave the floor only with closed and mechanically locked gates.

Fixed side walls in breakproof glass, to protect the sides not affected by access.

Simple and intuitive controls installed on board consoles with a unique design.

Retractable protective bellows configurable on 1, 2 or 3 sides and sensitive anti-crushing safety trip under the platform.

Automatic height recovery device on the upper floor.

Emergency anti-blackout device with buffer battery, for emergency descent in the event of a power failure.

Floor covering with non-slip rubber mat.

Options

Motorized gate opening, with timed closing.

Push-button panel post for landing controls.

Elevator type door, 2000mm high, on the upper floor, available with double, panoramic or small glass inserts.

Execution in AISI316 stainless steel, particularly resistant to salt air, ideal for installations in seaside resorts.

Vandal-proof execution, gates and fixed walls with panels in RAL painted metal sheet or in fine metal mesh.

Custom finishing: paint of your choice (RAL colours) and protective bellows color chosen from the 4 available variants.

Customized executions: made-to-measure platform dimensions, ideal for installations where the platform must necessarily adapt to the available spaces.

Technical data

Rated load:

300kg

External platform dimensions:

1500x1120 mm / 1500x1320 mm

Useful platform dimensions:

1400x900 mm / 1400x1100 mm

Max Travel:

2000mm

Pit depth:

245 mm for travel max 1000mm

290 mm for travel max 2000mm

Feed tension:

230 V Singlephase

Net gate opening:

900mm

Height of gates and fixed walls:

1100mm
